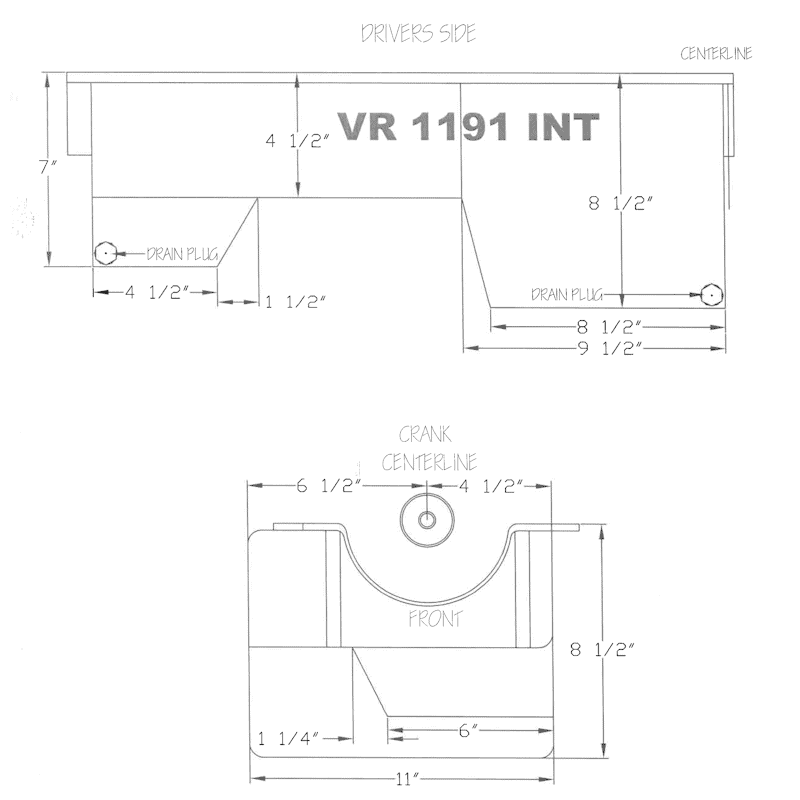

VR-1191-INT Pan Dimensions

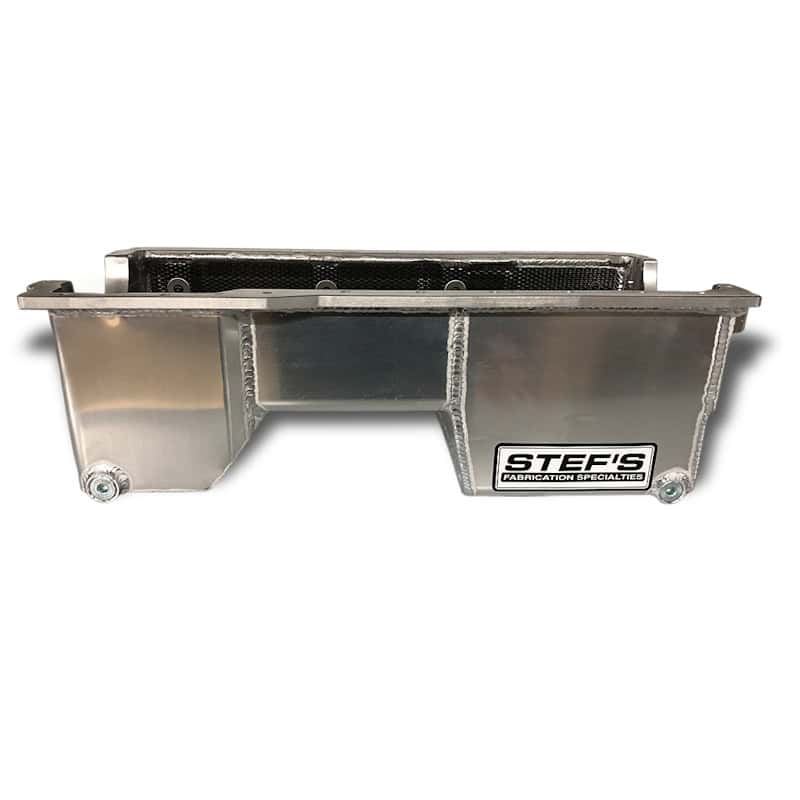

VR-1191-INT Side View - No dipstick Bung
VR-1191 BBF Dual Sump Oil Pan
VR-1191-INT Pan Dimensions
VR-1191-INT Side View - No dipstick Bung

429-460 BBF Fox Body Fabricated Aluminum Double Hump, Rear Sump Pro Oil Pan VR-1191-INT

$1,039.50 Each

Vincent Racing has designed a excellent Double Hump, Rear Sump fabricated aluminum pan for the 429-460 Big Block Ford block with an excellent track record of proven oil control. This pan is designed for an internal oil pump with the double hump, rear sump design that fits the Fox Body Mustangs.

  • For 429-460 BBF Blocks
  • Clears up to 4.500” Stroke w/Steel Rods.
  • Double Hump, Rear Sump for Fox Body Chassis
  • 2” Pass Side Full Kickout w/Starter Notch
  • Front Box Clears Kaase Oil Pump
  • 9″ Deep
  • Holds 7 qts (including filter)
  • Billet Rail Design
  • Includes Internal Oil Pickup Tube
  • Custom options and sizes available, contact us for details
SKU: VR-1191-INT Category: Tags: , , , , Brand:
Weight 16 lbs
Dimensions 26 × 16 × 13 in
