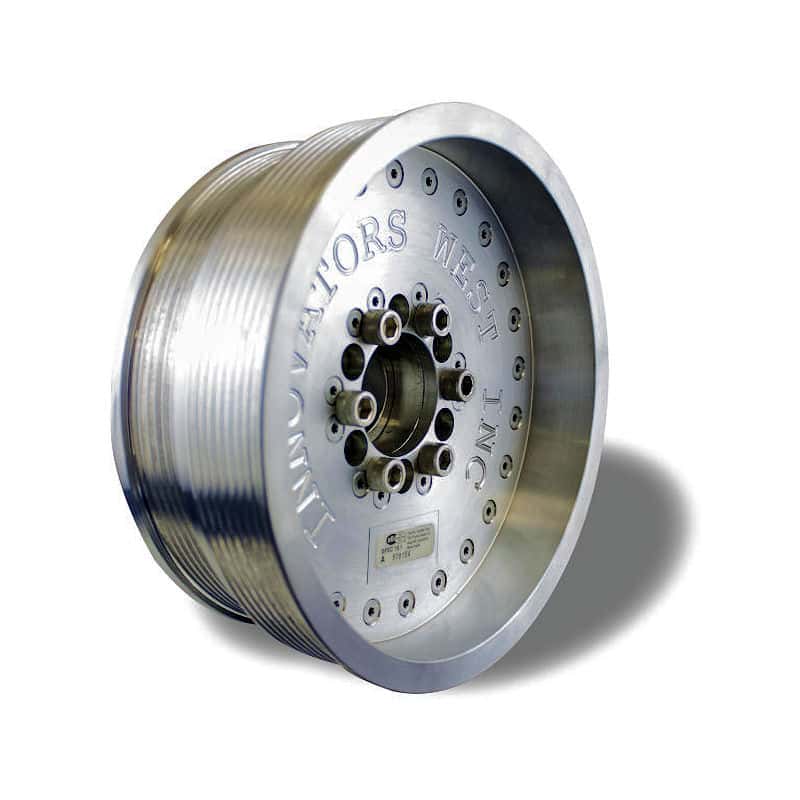

Innovators West 5.0/5.2L Coyote - 6-Rib Standard Dia(Back) / 8-Rib +10% Overdrive (Front) 818

Innovators West 5.0/5.2L Coyote – 6-Rib Standard Dia(Back) / 8-Rib +10% Overdrive (Front) 818

$536.50 Each

SFI 18.1 8 Rib 10% Overdrive dual accessory drive damper for 2011-up 5.0L & 5.2L Mustangs.

  • Diameter: 7.220″
  • Weight: 7.4 lbs
  • 6-Rib Standard Diameter (Back) / 8-Rib +10% Overdrive (Front)
  • 10% Overdrive
  • Exceeds SFI 18.1 standards and is marked on front with SFI Sticker, and on the rear with SFI number stamped into unit

  • Add an additional Keyway to your Damper. Required the crankshaft to be machined for a second keyway 180* out from the original keyway.

SKU: IW-818 Category: Tags: , , , Brand:

Dual Keyway Option

The double keyway option requires that the factory or aftermarket crankshaft be removed from the engine and a second keyway cut into the snout of the crankshaft. DO NOT run a double keyed damper on a crankshaft without the double keys. Failure to the damper hub can happen without the supporting key in the broached keyway slot. The dual keyway option is for Supercharged or Extreme Duty Applications (typically over 750 rwhp). Without the double key modification your crankshaft in these high horsepower applications can lead to the failure of the damper hub and/or the single keyway which results in damage to the damper and the crankshaft snout.



Weight 9.9 lbs
Dimensions 10 × 10 × 10 in
