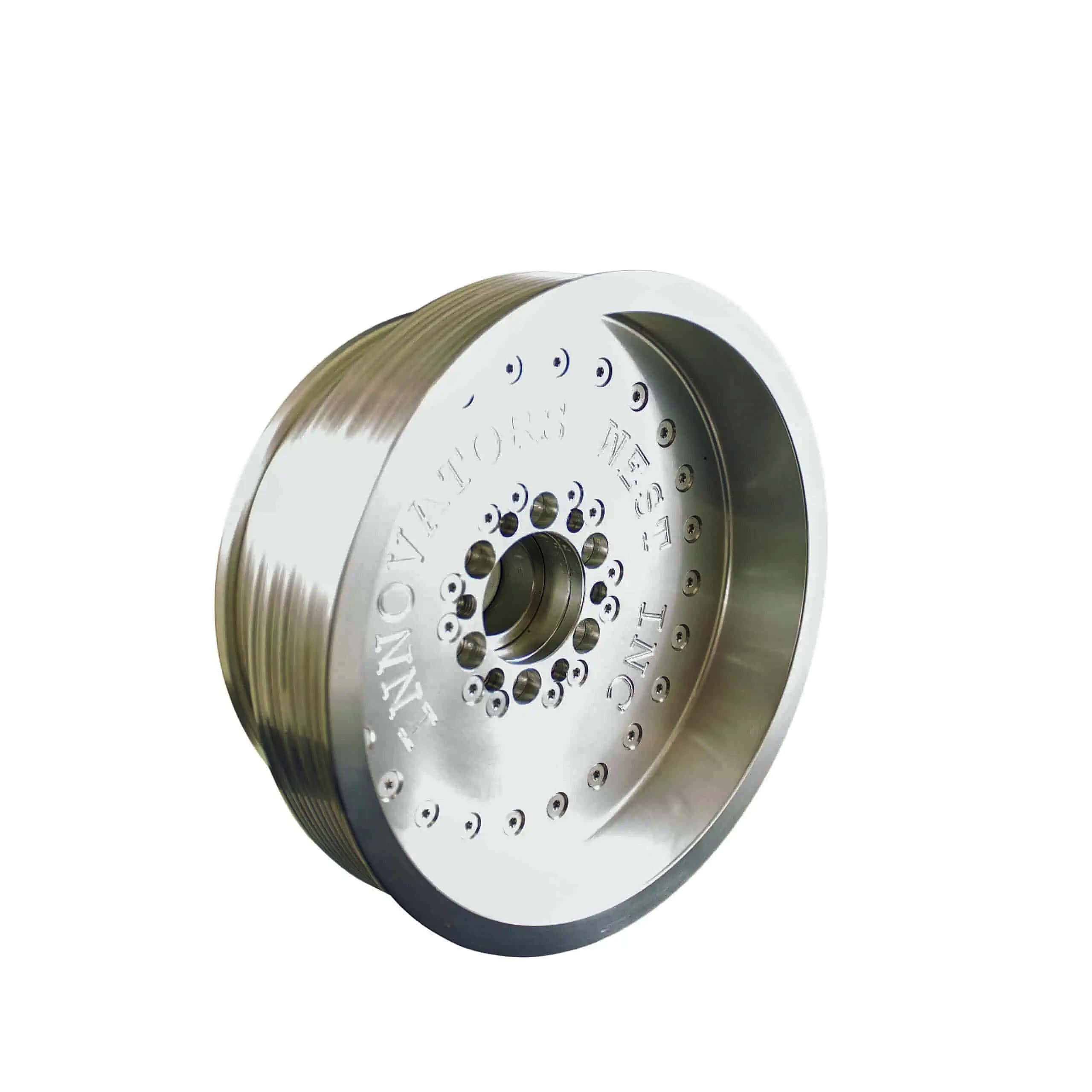

Innovators West 5.0L Coyote Harmonic Balancer 10-Rib 20% Overdrive Front 821

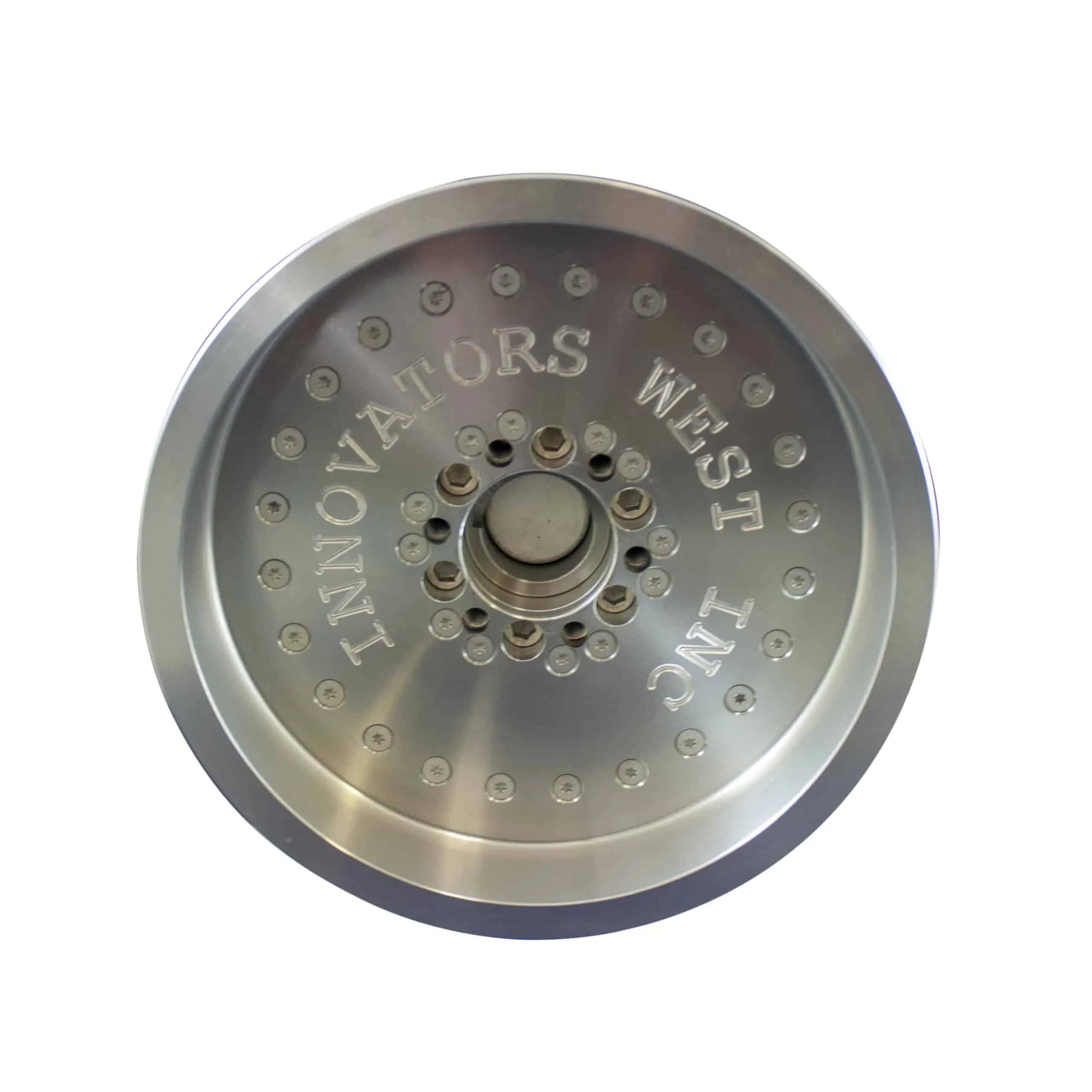

Innovators West 5.0L Coyote Harmonic Balancer 10-Rib 20% Overdrive Front 821 Front View

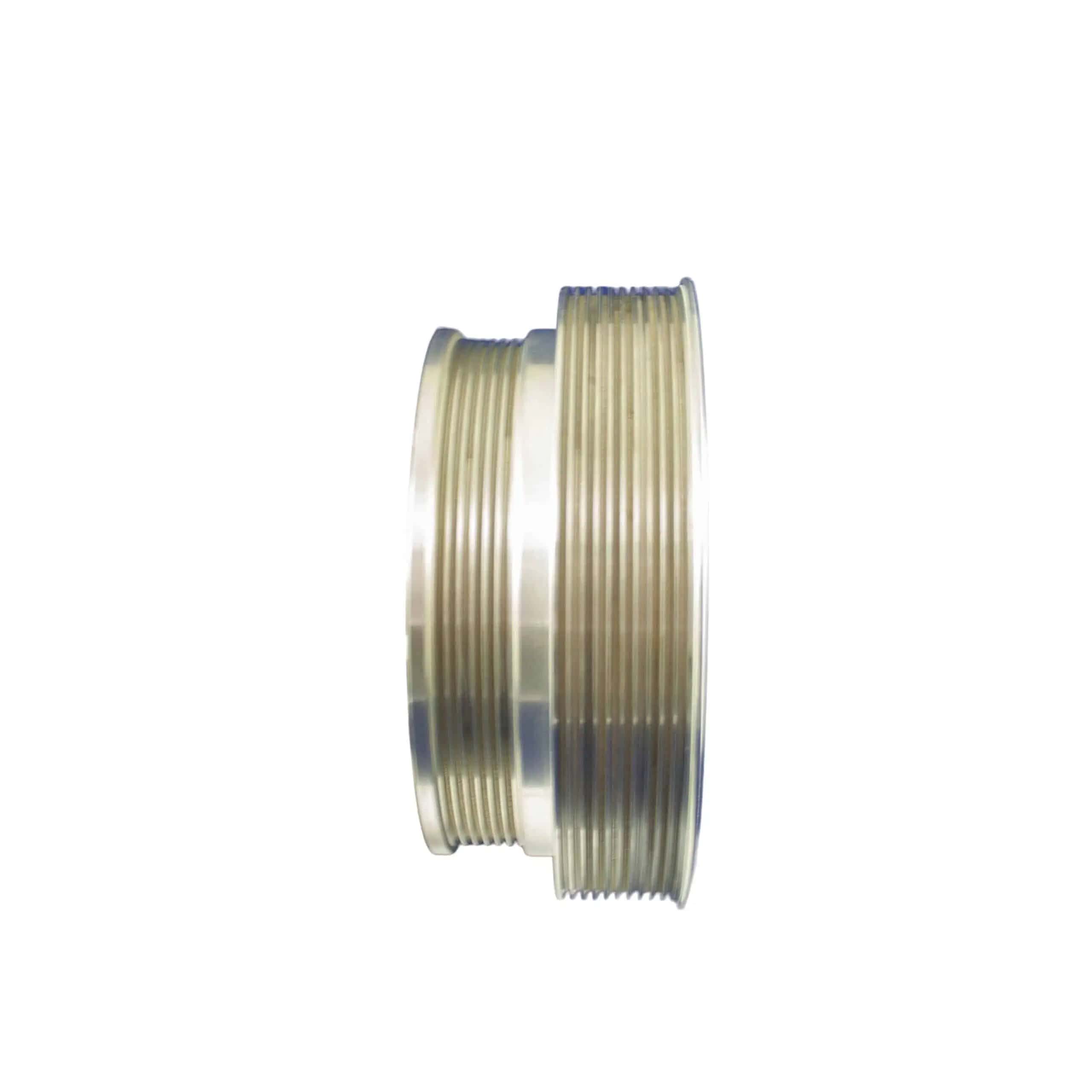

Innovators West 5.0L Coyote Harmonic Balancer 10-Rib 20% Overdrive Front 821 - Image 3
Innovators West 5.0L Coyote Harmonic Balancer 10-Rib 20% Overdrive Front 821
Innovators West 5.0L Coyote Harmonic Balancer 10-Rib 20% Overdrive Front 821 Front View

Innovators West 5.0L Coyote Harmonic Balancer 10-Rib 20% Overdrive Front 821

$613.28 Each

Innovators West 10 Rib 20% OD Front Pulley, 6 Rib STD diameter back pulley SFI 18.1 damper for 2011-up 5.0L Coyote Mustangs. Designed for the Whipple Supercharger 10 Rib System.

  • Diameter: 7.884″
  • Weight: 8.3 lbs
  • 6 Rib Standard Back Pulley
  • 10 Rib 20% Overdrive Front Pulley
  • Exceeds SFI 18.1 standards and is marked on front with SFI Sticker, and on the rear with SFI number stamped into unit

  • Add an additional Keyway to your Damper. Required the crankshaft to be machined for a second keyway 180* out from the original keyway.

SKU: IW-821 Category: Tags: , , , Brand:

Dual Keyway Option

The double keyway option requires that the factory or aftermarket crankshaft be removed from the engine and a second keyway cut into the snout of the crankshaft. DO NOT run a double keyed damper on a crankshaft without the double keys. Failure to the damper hub can happen without the supporting key in the broached keyway slot. The dual keyway option is for Supercharged or Extreme Duty Applications (typically over 750 rwhp). Without the double key modification your crankshaft in these high horsepower applications can lead to the failure of the damper hub and/or the single keyway which results in damage to the damper and the crankshaft snout.



Weight 9.9 lbs
Dimensions 10 × 10 × 10 in
