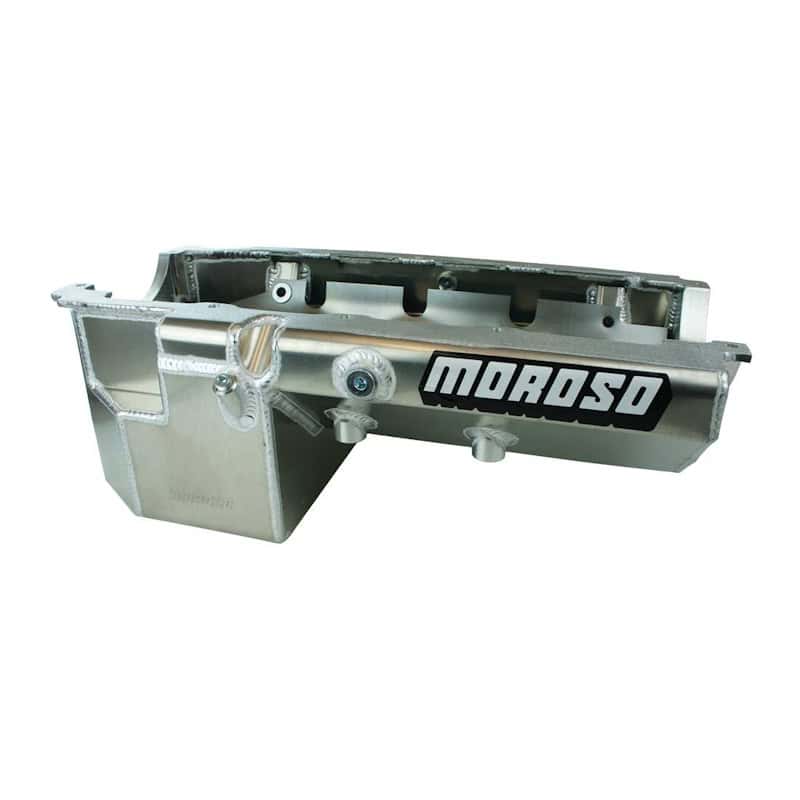

Moroso BBC Aluminum Oil Pan 20385
Moroso BBC Aluminum Oil Pan 20385 Dimensions

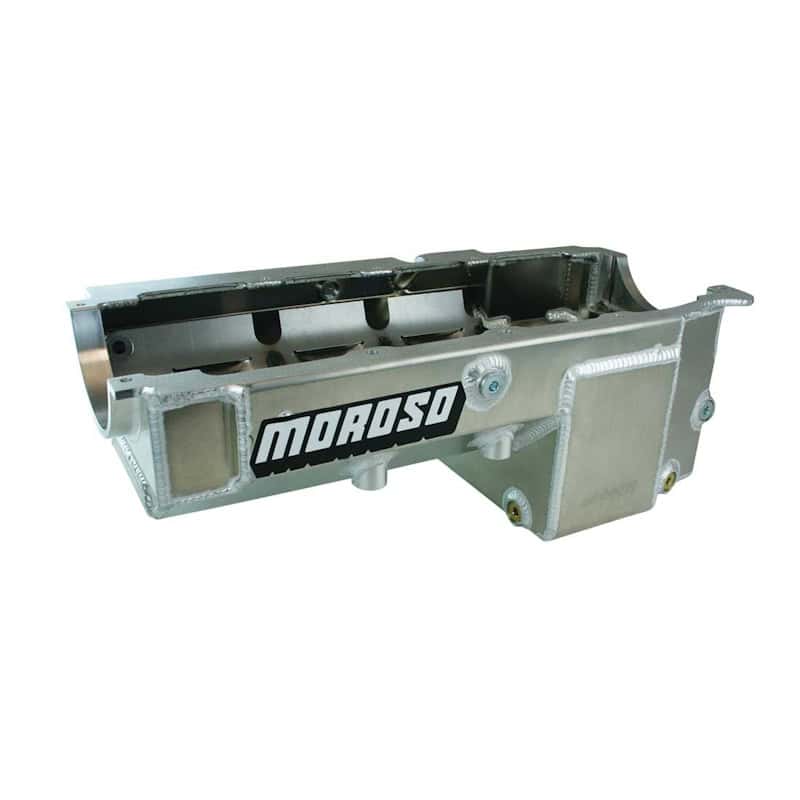

Moroso BBC Aluminum Oil Pan 20385 Left View

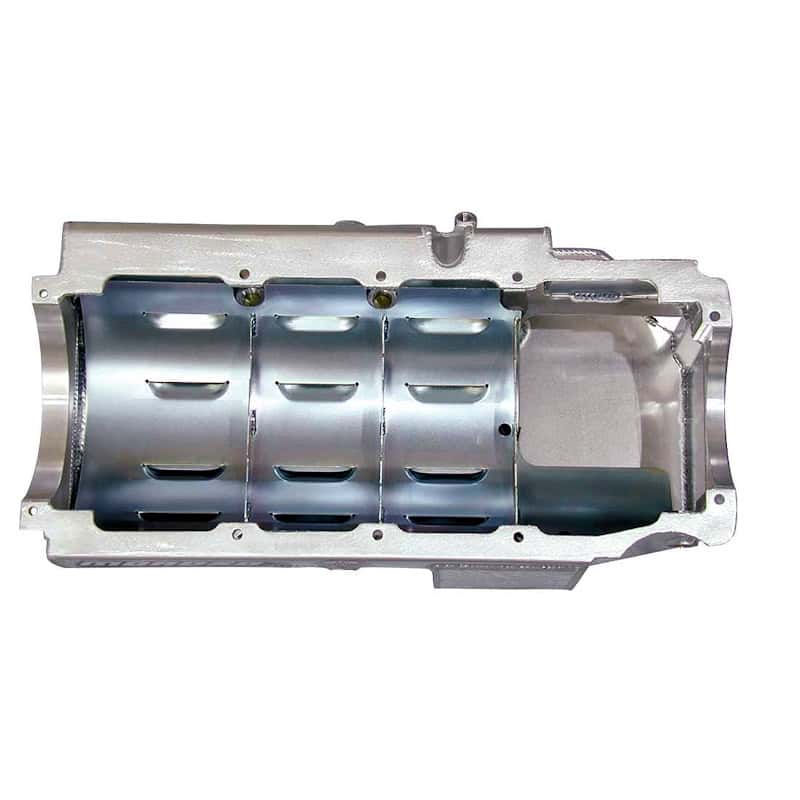

Moroso BBC Aluminum Oil Pan 20385 Top View

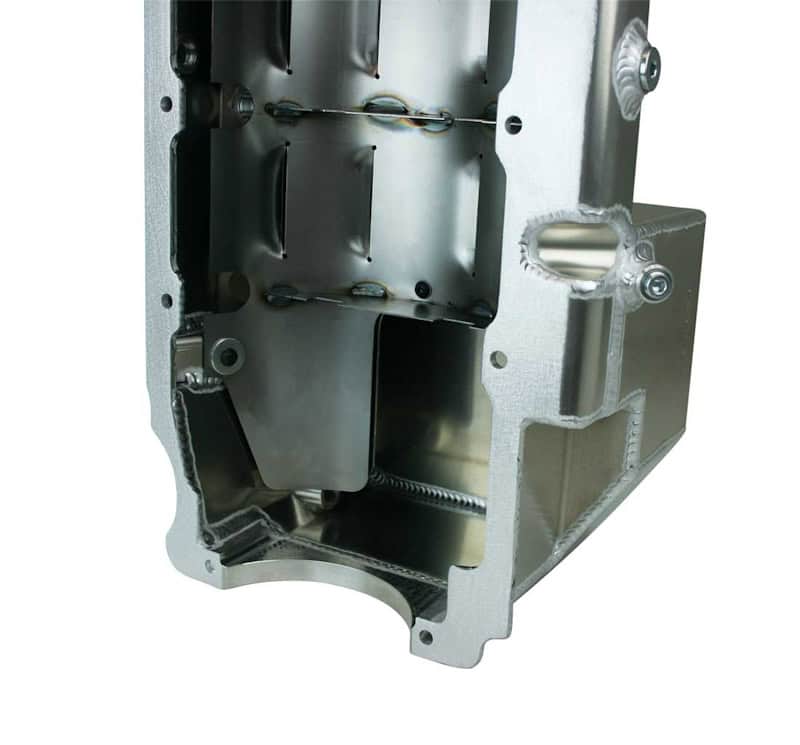

Moroso BBC Aluminum Oil Pan 20385 Detail
Moroso BBC Aluminum Oil Pan 20385
Moroso BBC Aluminum Oil Pan 20385 Dimensions
Moroso BBC Aluminum Oil Pan 20385 Left View
Moroso BBC Aluminum Oil Pan 20385 Top View
Moroso BBC Aluminum Oil Pan 20385 Detail

Moroso 20385 BBC Mark IV, 7 qt 8″ Deep Fabricated Aluminum Oil Pan

$1,067.00

Moroso 8” Deep BBC Mark IV (Not Gen V or VI) Aluminum Rear Sump Oil Pan #20485

  • 8” Depth
  • Updated with a larger starter notch for compatibility with CSR “Platinum Max” starters
  • Clears 4.75″ stroke with most aluminum rods
  • Fully fabricated aluminum constructed with billet end-seals for superior sealing and fitment
  • Utilizes “race” pan rail bolt pattern
  • Double kick-out design and solid louvered windage tray with main cap partitions for improved oil control
  • Compatible with Moroso spur gear and geroter billet oil pumps
  • Two -8AN drain backs
  • 1/4 NPT Dipstick Provision (Right Side)
SKU: MOR-20385 Category: Tag: Brand:
  • 8” Depth
  • Clears 4.75″ stroke with most aluminum rods
  • Fully fabricated aluminum constructed with billet end-seals for superior sealing and fitment
  • Utilizes “race” pan rail bolt pattern
  • Double kick-out design and solid louvered windage tray with main cap partitions for improved oil control
  • Compatible with Moroso spur gear and geroter billet oil pumps
  • Two -8AN drain backs
  • 1/4″ NPT Dipstick Provision
PART NO. RECOMMENDED PICKUPS
24440 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24441* Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24445 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump



PART NO. OIL PUMP/PICKUP PACKAGE
22175 Moroso Standard Volume Package
22185 Moroso High Volume Package
22186* Moroso High Volume Package/Front Style Offset Pickup
22187 Moroso High Volume Package with Windage Shield
22163 Moroso Billet Aluminum Oil Pump, BBC, High Volume
22164 Moroso Billet Aluminum Oil Pump, BBC, Standard Volume
22167 Moroso Billet Aluminum High Volume Oil Pump

*Offset to middle of sump for more consistent oil pressure under braking

PART NO. AVAILABLE OPTIONS
23139 Windage Tray, Old Style
25971 Universal Dipstick Kit, Braided Stainless Flex Tube
25973 Universal Dipstick Kit, Twist Lock (for NHRA Rule)
23140 Windage Tray, New Style
38361 Oil Pan Fastener Kit, BBC Race Pans
93156 Oil Pan Gasket, 4 piece design, BBC IV, with race bolt pattern
Weight 18.5 lbs
Dimensions 27 × 17 × 10 in
