- Gen 1 & 2 Coyote use factory oil pickup, Gen 3 Coyote/Voodoo use Moroso 24578 pickup, Gen 4 use Moroso 24581

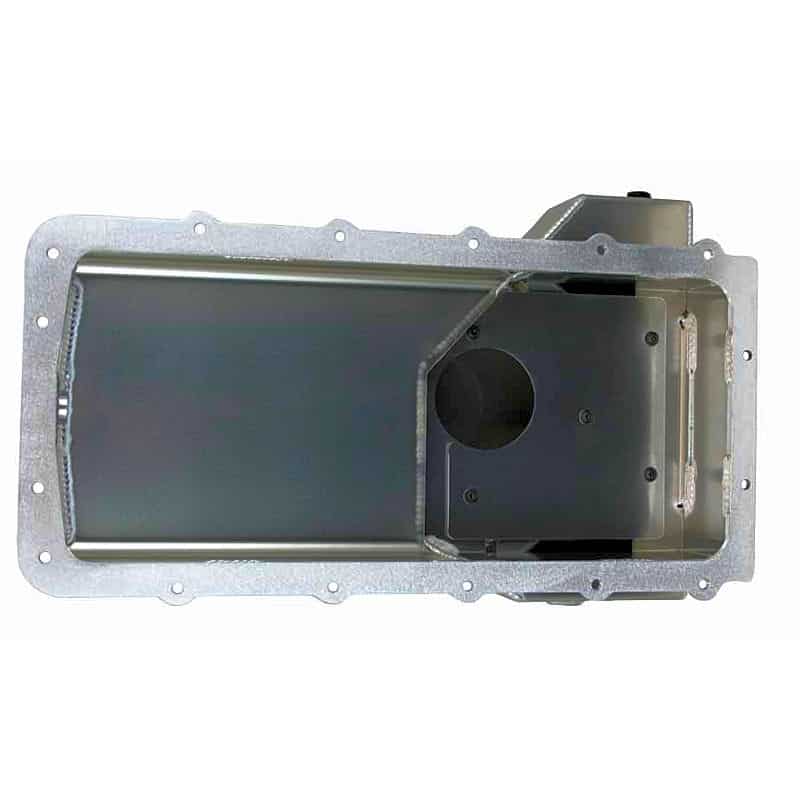

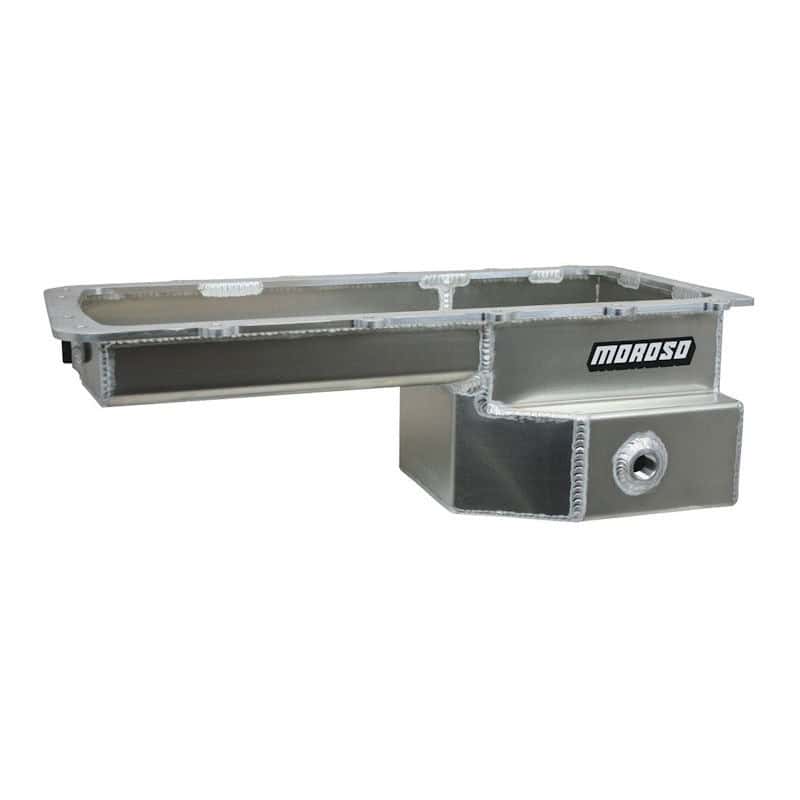

Moroso 20572 Road Race Coyote 5.0L Ford 6 5/8″ Deep 9 qt Aluminum Oil Pan
$766.99 Each
Moroso Ford 5.0L Coyote Road Race Baffled Fabricated Wet Sump Oil Pan with 6 5/8″ Deep Sump. For Coyote 5.0 and 5.2 L engines with Pickup.
Fits: Mustang, 2011-Up, Mustang 1994-’10 and other Ford Rear Sump applications with Ford “Coyote” Engines. (Check Dimensions)
- For Ford Modular Coyote Engines
- Designed to be used with Factory Dipstick
- Features Road Race designed trap door and removable anti-slosh baffle for improved oil control
- 1/2″ NPT female fitting for turbo drain back and 1/2″ NPT female fitting for oil temperature sender
- 6 5/8″ deep
- 9 quart capacity
- 13 1/16″ Wide (Pan)
- 20 mm fitting for factory oil level sender*
*If the factory low oil warning sensor is not going to be used, Moroso 22738, 20mm Plug with copper washer is available.
