Related Components
Pinion support races… N1931
Support o-ring………………. N1958A
Tail bearing……………………. N1943
Fel Pro gasket……………….. H1112G
Fel Pro Teflon® gasket…… H1111
Lube Locker gasket……….. H1111S

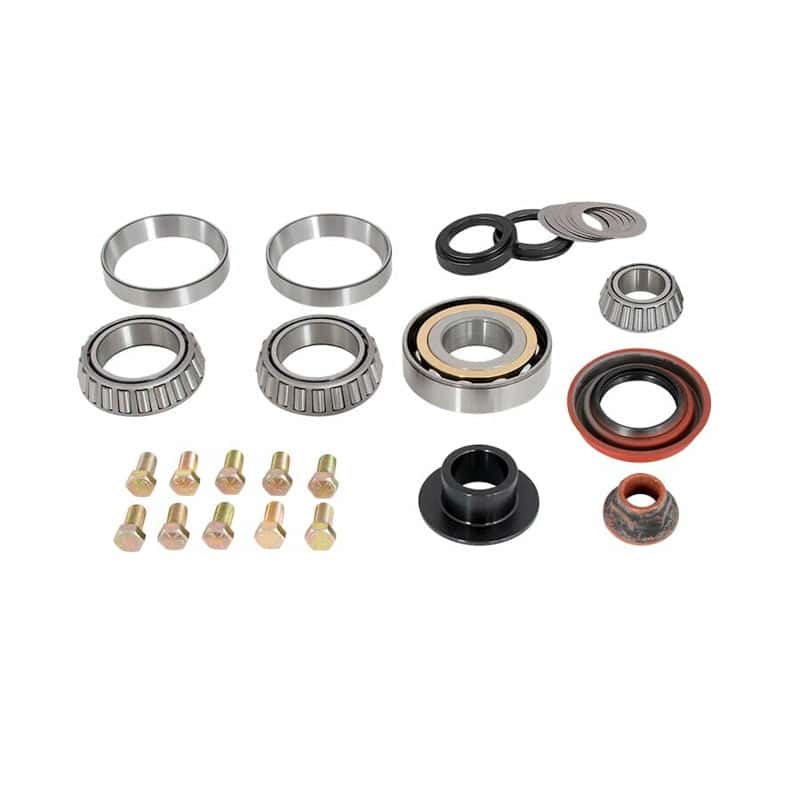

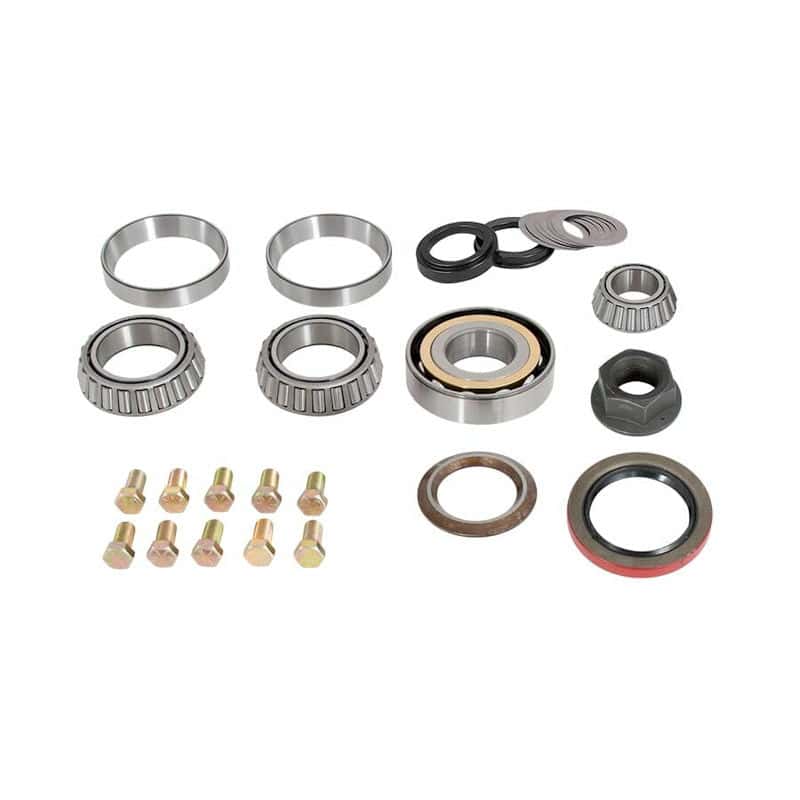

Strange R3200LB / R3200SB HD Pro Case Installation Kit for Ball Bearing Pinion Support, 28 or 35 Spline Pro Gear
$295.00 Each
Strange Engineering Install Kit for Strange HD Pro Cases that use a Ball Bearing Pinion Support for 3.250″ or 3.812″ Bore Cases. Support races, o-ring, & tail bearing are not included.
Kit Includes
- Tapered front pinion bearing
- Rear angular contact ball bearing assembly
- Rear bearing spacer washer
- Adjustable pinion preload spacer
- Side bearings and races
- Pinion seal
- Adapter / spacer sleeve (28 Spline)
- Rear bearing spacer washer (35 Spline)
- Flanged pinion nut
- 1/2″-20 and/or 7/16″-20 ring gear bolts – N1964 / N1965 / D1565RK
Notes
- Designed for Strange Spool (Steel or Aluminum)
- For Other Spools – The ring gear bolts supplied are designed for a flange thickness of .375″ to .447″. If your spool exceeds .447″, the ring gear bolts may be be too short. Specify if using an aluminum spool
