Related Components
Kit without pinion races………… R5238UC
Kit for 28 spline pinion…. R5237UC / R5237UCR
Fel Pro gasket………………………… H1112G
Fel Pro Teflon® gasket……………. H1111
Lube Locker gasket………………… H1111S
Strange R5238UCR Ultra & Billet Case Installation Kit for Tapered Bearing Support & 35 Spline Pro Gear
$315.00 Each
Strange Engineering Install Kit R5238UCR for Strange Ultra & Billet Cases that use a Tapered Bearing Support and 35 Spline Pro Gear.

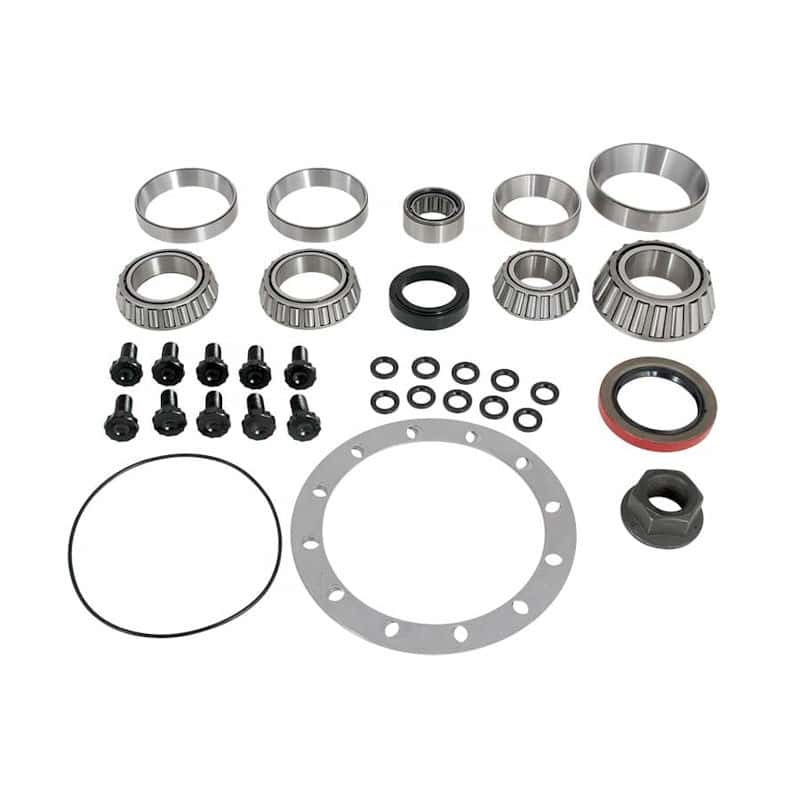

Kit Includes
- Front pinion bearings and races – N1936 / N1931
- Rear pinion bearings & races – N2001F / N2001E
- Side bearings and races – D1590 or D1592
- Tail bearing – N1943
- Pinion seal – N1961
- Pinion support o-ring – N1950B
- Pinion nut – N1922B
- Solid machinable pinion preload spacer – N1924A
- Pinion depth shim kit – N1962UC
- ARP ring gear bolts – N1975 & N1976, D2004B & N1950K, or N1973
Notes
- Billet Cases Do Not Use Ring Gear Bolt Washers
- For 4.00″ bore Ultra Case – Please call
- Fits For Strange Spool (Steel or Aluminum)
- For Other Spools – The ring gear bolts supplied are designed for a flange thickness of .375″ to .447″. If your spool exceeds .447″, the ring gear bolts may be be too short. Specify if using an aluminum spool
