Leash Electronics Single Stage Timer with 70 amp Relay is perfect for delayed activation of a Nitrous Stage, a Transmission Dump Valve, Shifter or other timed function on your race car.
Features a built in interrupt input used to disable the timer during transbrake activation. Includes a 70 amp relay and fuses so there’s no need to have any extra external relays to clutter up your wiring. Unit can be set for no delay on instantly and can be disabled using the last 2 dip switches. Timer can also be set to wait for the delay then turn on the relay or it can be set to turn the relay on instantly when activated then wait the delay and turn off the relay with the last 2 dip switches.

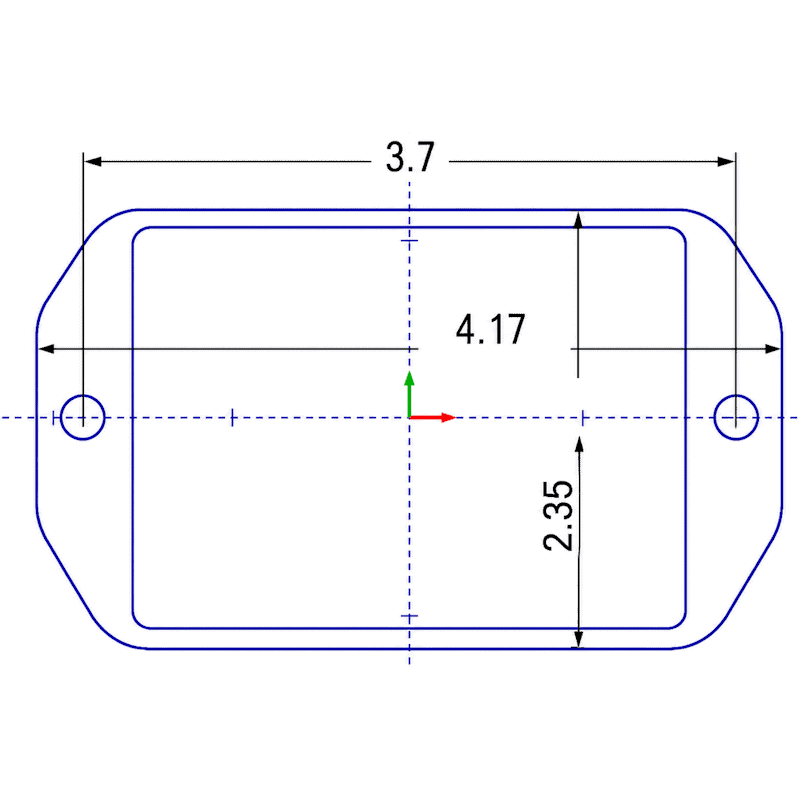

Very simple to operate and use. Timer also is very small and compact for all the features it has. Easy to mount – nothing like the hideous old Digiset Timers. These units can be wired together for multi nitrous kit configurations.
IMPORTANT – Make sure to chose the Timing interval you want in the options, we have either 0 – 6.30 seconds adjustable in .1s increments or 0 – .630 seconds (under 1 second) adjustable in .010s increments.
0-6.30 seconds in .1 increments, 0-.63 seconds in .01 increments
