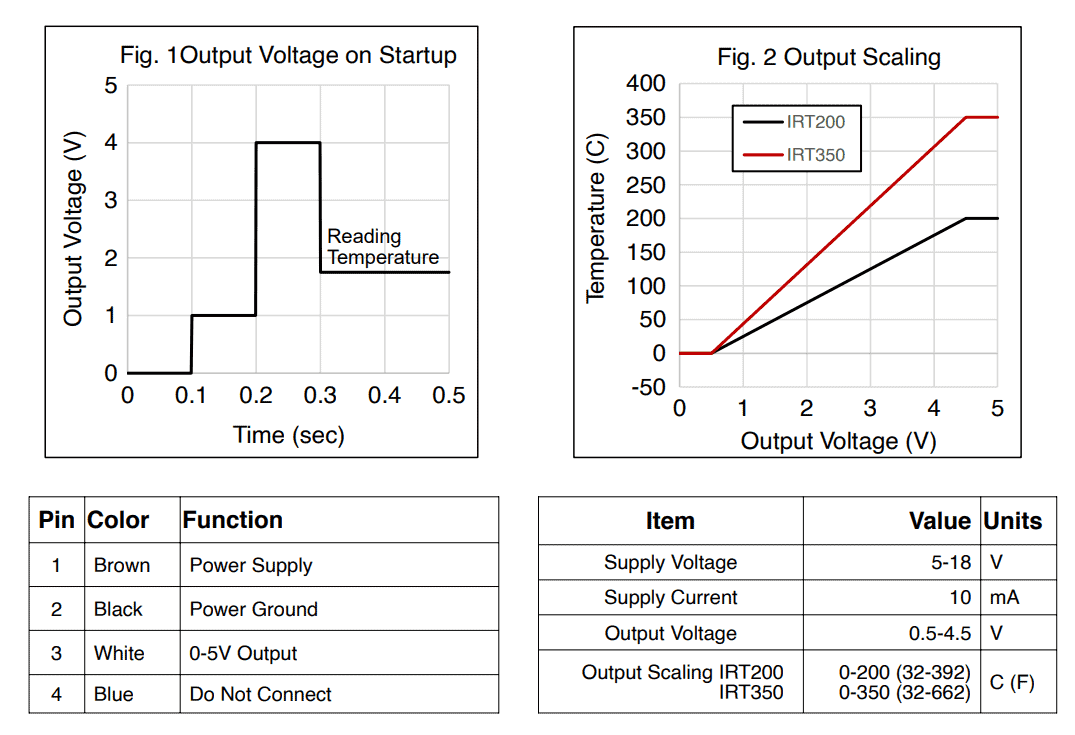

IR200 and IRT350 are miniature infrared temperature sensors with a linear analog output. Ideal for measuring track surface temperature, tire temperature, or torque converter temperature. Standard scaling of 0-200C (32-392F) and 0-350C (32-662F) are available. A standard 30” long cable is integrated into the sensor. Flying lead and finished DTM connection options are available. Once powered on, the IRT output will go through the 0V, 1V, 4V sequence shown in Fig. 1, before outputting the current temperature reading. The output is scaled linearly from 0.5-4.5V as shown in in Fig 2.
Loop Research IRT 392° – 662° F Infrared Temperature Sensor IRT 200/350
Price range: $220.00 through $240.00 Each
Loop Research’s IRT200 & IRT350 are compact Infrared Sensors ideal for measuring and recording track temp, tire temp, torque converter temp or other racing applications. With their .5 to 4.5 VDC Linear Output, they are perfect for analog input into your ECU or Data Logger.
- 0.5-4.5VDC Linear Analog Output
- 5-18VDC Supply Voltage
- Mounts with (2) 6-32UNC Mounting Holes
- Two Temperature Ranges Available, 32° to 392° (0-200C) or 32° to 662°(0-350C)
- Includes 30″ Cable with your choice of Unterminated / Flying Lead or Deutsch Style DTM Connector Kit

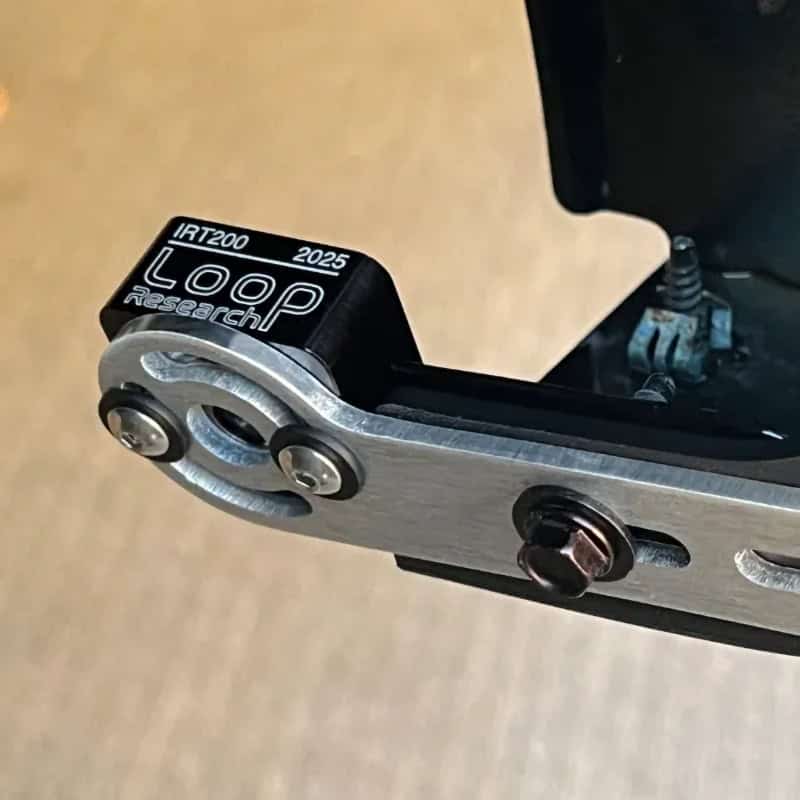

- Universal Aluminum Mounting Bracket Included
- See Scaling Data Below
